產品特性
- TORX® 被廣泛使用於先進工業和高性能質量產品。
- 硬度: HRC 58° ~ 60°
- 材質: 高合金鋼
- 規範: 1/4″ DIN3126 – C6.3; DIN3126-E6.3
TORX® 25MM TX 起子頭
Gallery not found.
京瓷車刀（Kyocera）TORX® 25MM TX 起子頭
BIT25-TX6~20
25MM TX 色帶起子頭
扭力起子配件

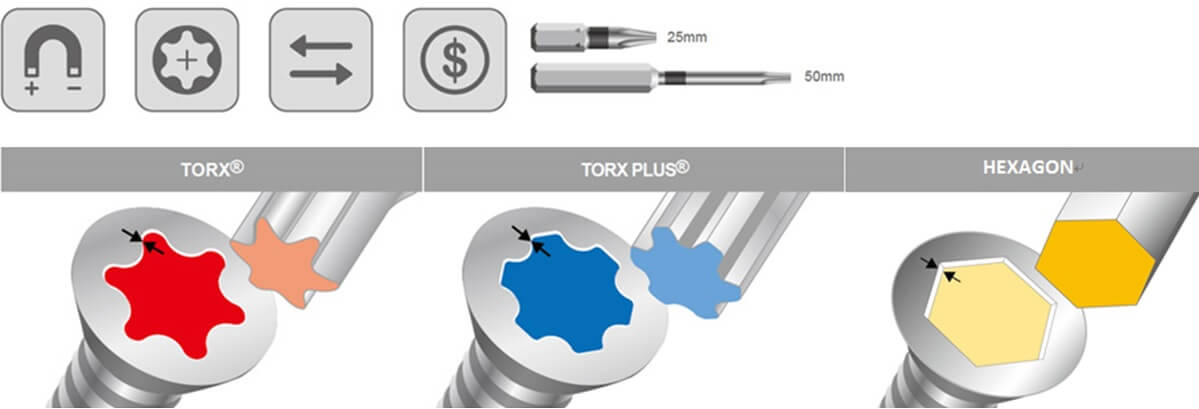

TX形狀; 增加起子頭和縲絲的接觸面，更合適扭力的控製
刀俱應用中最常使用到的尺寸
產品規格
- 簡單操作、磁力設計，起子頭不易鬆脫;
- 放置時起子頭也會自動定位，特有顏色管理起子頭交替使用
產品內容
- 25mm 起子頭 x 6
使用說明
Large support areas for thumb and index fi nger on the ergonomically shaped handles. The transmission of high torques is thus quite simple. Cylindrical handle shaft for quick turning of screws. User friendly for CNC cutting tool of machining, turning and milling.
規格表
| Part No. | Handle Type | Torque | Bits | Size |
|---|---|---|---|---|
| STS-TX-B1-S | LT, ST, HD | 5.3 In-lb (0.6 Nm)-26.6 In-lb (3.0 Nm) | Torx 1″ | TX6-TX15 |
| STS-TX-B1-06 | LT, ST, HD | 5.3 In-lb ( 0.6 Nm) | Torx 1″ | TX6 |
| STS-TX-B1-07 | LT, ST, HD | 8.0 In-lb (0.9 Nm) | Torx 1″ | TX7 |
| STS-TX-B1-08 | LT, ST, HD | 10.6 In-lb (1.2 Nm) | Torx 1″ | TX8 |
| STS-TX-B1-09 | LT, ST, HD | 12.4 In-lb (1.4 Nm) | Torx 1″ | TX9 |
| STS-TX-B1-10 | LT, ST, HD | 17.7 In-lb (2.0 Nm) | Torx 1″ | TX10 |
| STS-TX-B1-15 | LT, ST, HD | 26.6 In-lb (3.0 Nm) | Torx 1″ | TX15 |
| STS-TX-B1-20 | LT, ST, HD | 44.3 In-lb (5.0 Nm) | Torx 1″ | TX20 |
| STS-TX-B2-S | LT, ST, HD | 5.3 In-lb (0.6 Nm)-26.6 In-lb (3.0 Nm) | Torx 2″ | TX6-TX15 |
| STS-TX-B2-06 | LT, ST, HD | 5.3 In-lb (0.6 Nm) | Torx 2″ | TX6 |
| STS-TX-B2-07 | LT, ST, HD | 8.0 In-lb (0.9 Nm) | Torx 2″ | TX7 |
| STS-TX-B2-08 | LT, ST, HD | 10.6 In-lb (1.2 Nm) | Torx 2″ | TX8 |
| STS-TX-B2-09 | LT, ST, HD | 12.4 In-lb (1.4 Nm) | Torx 2″ | TX9 |
| STS-TX-B2-10 | LT, ST, HD | 17.7 In-lb (2.0 Nm) | Torx 2″ | TX10 |
| STS-TX-B2-15 | LT, ST, HD | 26.6 In-lb (3.0 Nm) | Torx 2″ | TX15 |
| STS-TX-B2-20 | LT, ST, HD | 44.3 In-lb (5.0 Nm) | Torx 2″ | TX20 |
| STS-TX-B2-25 | LT, ST, HD | 48.7 In-lb (5.5 Nm) | Torx 2″ | TX25 |
| STS-IP-B1-S | LT, ST, HD | 5.3 In-lb (0.6 Nm)-26.6 In-lb (3.0 Nm) | Torx Plus 1″ | IP6-IP15 |
| STS-IP-B1-06 | LT, ST, HD | 5.3 In-lb (0.6 Nm) | Torx Plus 1″ | IP6 |
| STS-IP-B1-07 | LT, ST, HD | 8.0 In-lb (0.9 Nm) | Torx Plus 1″ | IP7 |
| STS-IP-B1-08 | LT, ST, HD | 10.6 In-lb (1.2 Nm) | Torx Plus 1″ | IP8 |
| STS-IP-B1-09 | LT, ST, HD | 12.4 In-lb (1.4 Nm) | Torx Plus 1″ | IP9 |
| STS-IP-B1-10 | LT, ST, HD | 17.7 In-lb (2.0 Nm) | Torx Plus 1″ | IP10 |
| STS-IP-B1-15 | LT, ST, HD | 26.6 In-lb (3.0 Nm) | Torx Plus 1″ | IP15 |
| STS-IP-B1-20 | LT, ST, HD | 44.3 In-lb (5.0 Nm) | Torx Plus 1″ | IP20 |
| STS-IP-B2-S | LT, ST, HD | 5.3 In-lb (0.6 Nm)-26.6 In-lb (3.0 Nm) | Torx Plus 2″ | IP6-IP15 |
| STS-IP-B2-06 | LT, ST, HD | 5.3 In-lb (0.6 Nm) | Torx Plus 2″ | IP6 |
| STS-IP-B2-07 | LT, ST, HD | 8.0 In-lb (0.9 Nm) | Torx Plus 2″ | IP7 |
| STS-IP-B2-08 | LT, ST, HD | 10.6 In-lb (1.2 Nm) | Torx Plus 2″ | IP8 |
| STS-IP-B2-09 | LT, ST, HD | 12.4 In-lb (1.4 Nm) | Torx Plus 2″ | IP9 |
| STS-IP-B2-10 | LT, ST, HD | 17.7 In-lb (2.0 Nm) | Torx Plus 2″ | IP10 |
| STS-IP-B2-15 | LT, ST, HD | 26.6 In-lb (3.0 Nm) | Torx Plus 2″ | IP15 |
| STS-IP-B2-20 | LT, ST, HD | 44.3 In-lb (5.0 Nm) | Torx Plus 2″ | IP20 |
| STS-IP-B2-25 | LT, ST, HD | 48.7 In-lb (5.5 Nm) | Torx Plus 2″ | IP25 |
| STS-IP-B2-27 | LT, ST, HD | 53.1 In-lb (6.0 Nm) | Torx Plus 2″ | IP27 |
