MRW

京瓷車刀(Kyocera)MRW

高能率多刃圓刀片銑刀

MRW型

High Efficiency Radius Cutter with Multiple-edge

  • 兩面8刃仕樣經濟型
    Economical 8-edge insert
  • 螺旋切削力低抵抗
    Low cutting force by helical cutting edge design
  • 實現穩定加工 平鎖結構穩定加工
    Flat lock structure for stable machining

支援廣泛的難切削材料 Applicable to wide application range from steel to difficult-to-cut materials

難削材加工用 CA6535(CVD)

CA6535 for difficult-to-cut materials

不鏽鋼加工用 PR1535 (PVD)

PR1535 for stainless steel

產品介紹

MRW型

高能率經濟型
被削材對應範圍大
兩面仕樣負角型刀桿新登場

Economical and high efficiency New radius cutter with double-face insert for various types of workpieces

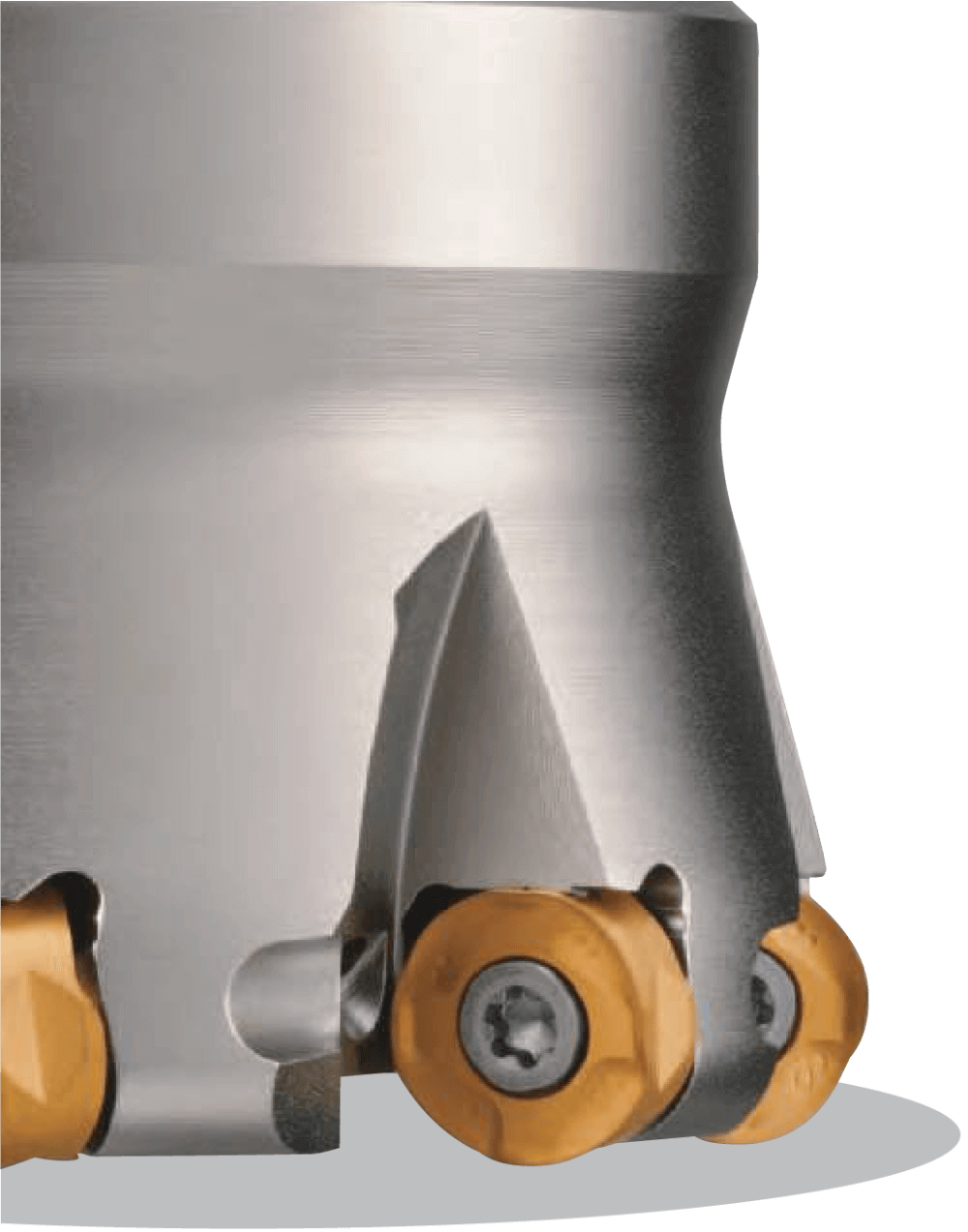

未命名 3 03 resized resized
 POINT1
兩面8仕樣經濟型
Economical 8-edge insert

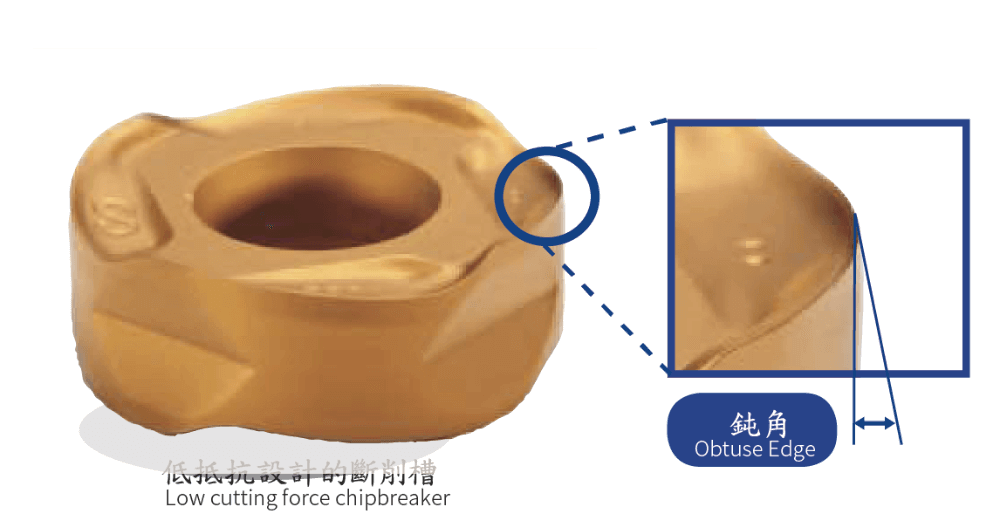

 POINT2
結合鋒利切與口強度
Combine sharpness and cutting edge strength
鈍角樣式改善切刀強度
Improved edge strength due to obtuse edge

未命名 3 04 resized resized

 POINT3

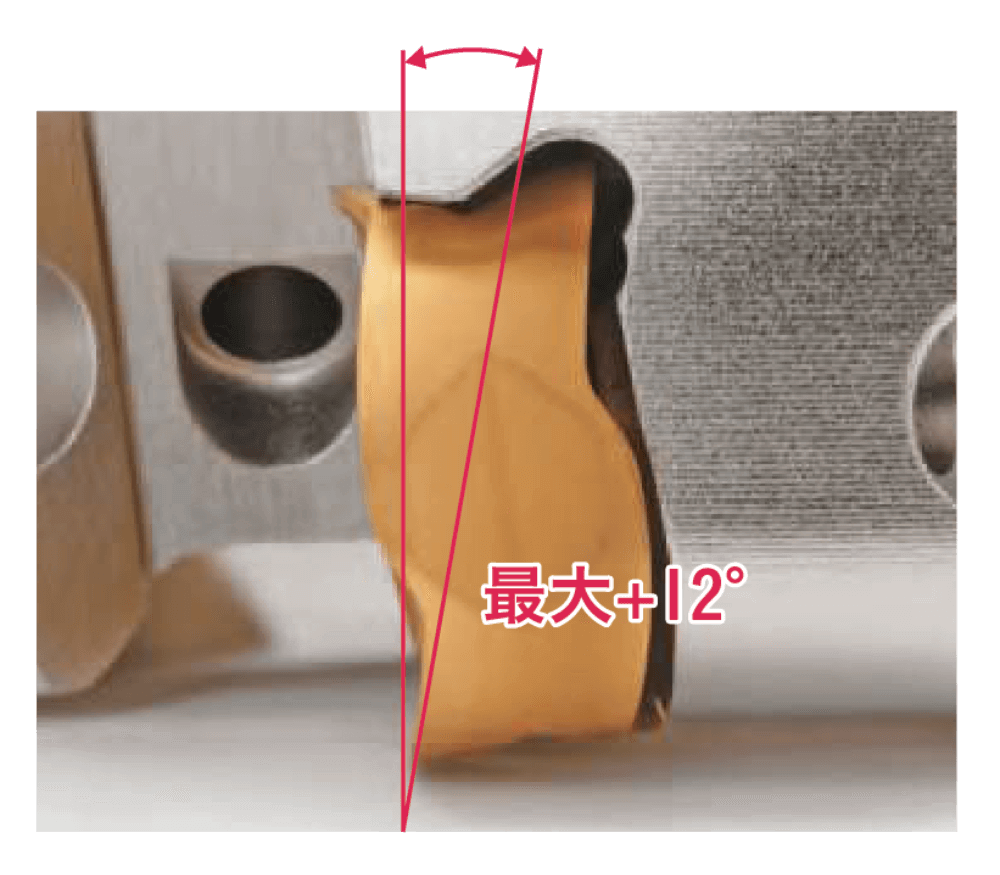

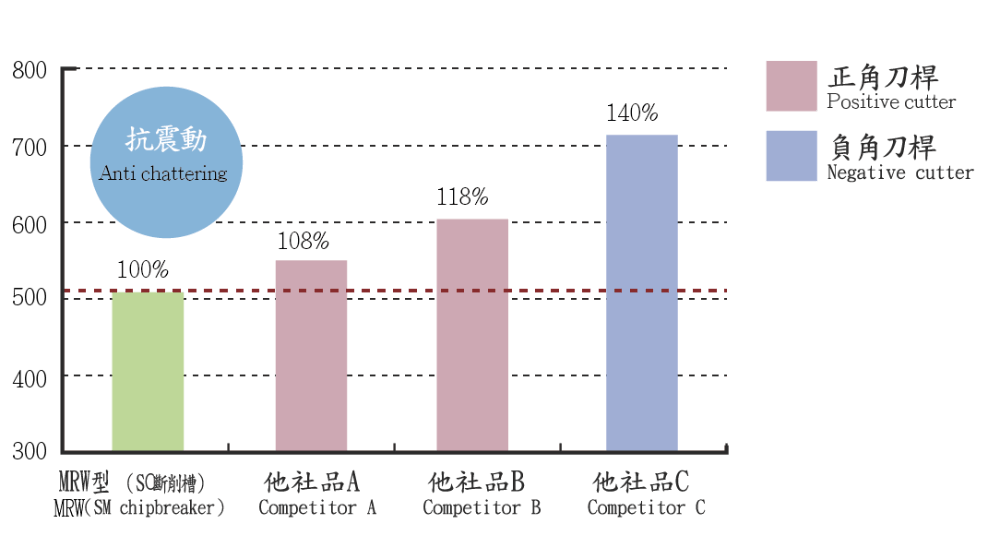

螺旋切刃A.R. 最大+12°確保與正角刀片一樣的低抵抗
Helical cutting edge design with maximum axial rake 12° reduced low cutting force equivalent to positive inserts

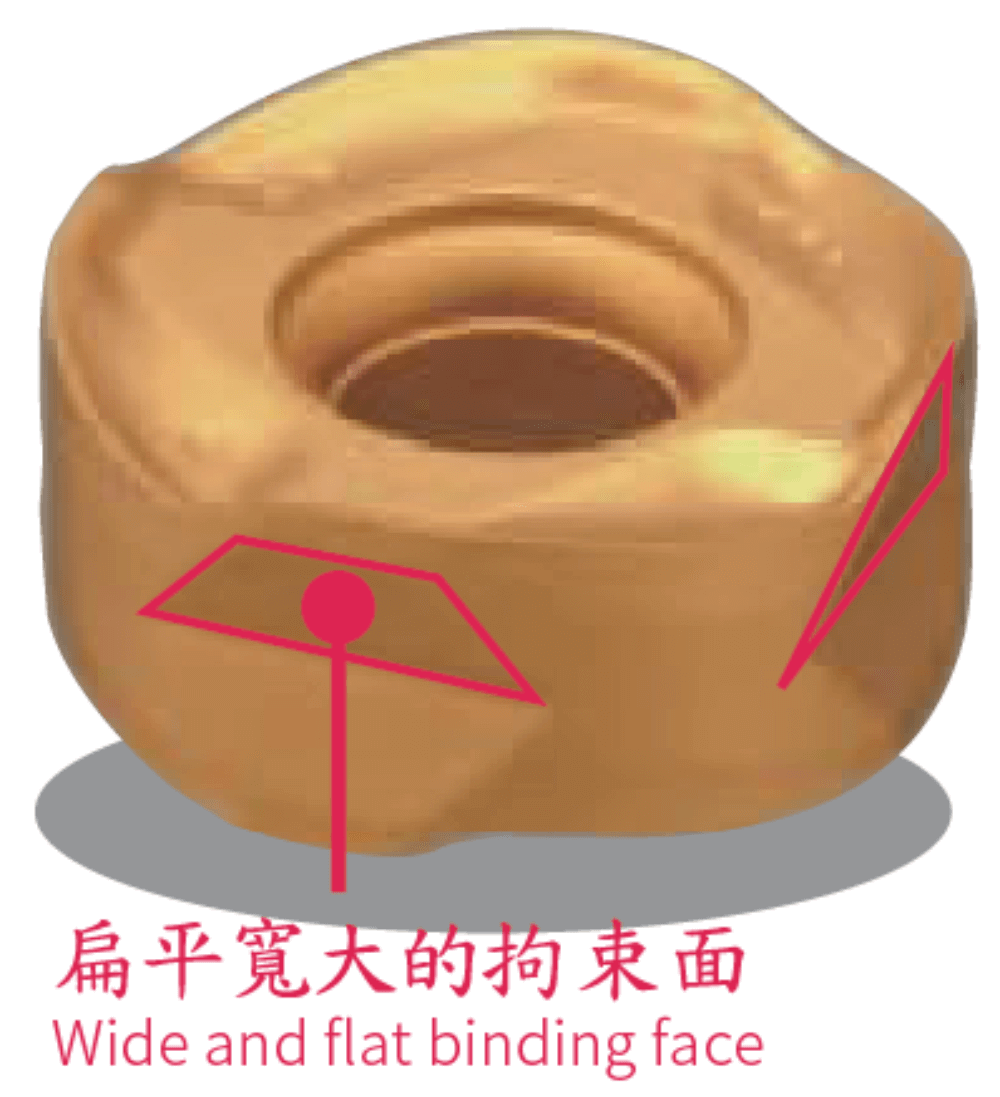

 POINT4

平鎖結構確保刀片固定 抑制加工時刀片不穩固的狀況 實現安定加工

Flat Lock Structure to hold insert firmly Prevent insert rotation during machining and realizes stable cutting

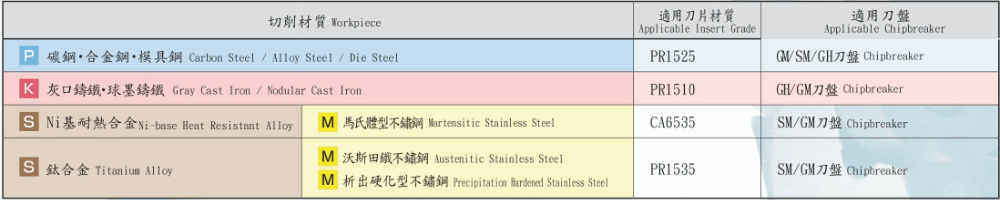

從鋼、不鏽鋼到耐熱合金 利用4材質及3種斷削槽實現長使用壽命加工

Long tool life by wide lineup with 4 grades and 3 chipbreakers, available for steel, stainless steel and heat resistant alloy

未命名 3 12 resized resized

 POINT5

難切削材質專用新材質!

New grade for difficult-to-cut material

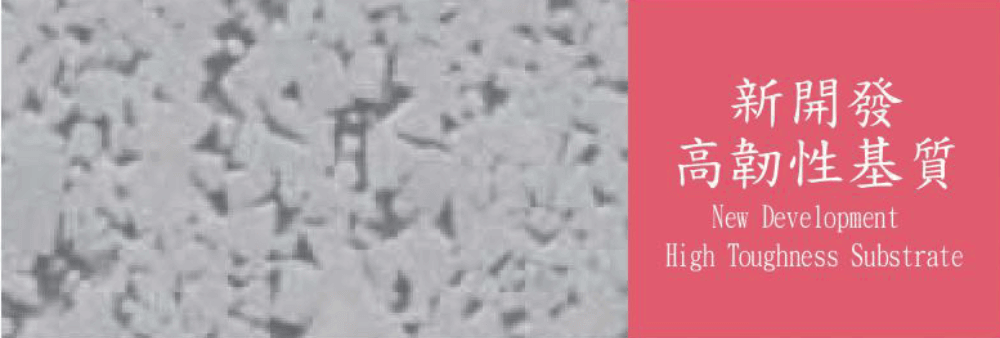

特別針對突發性損壞 實現高效率安定加工
Stable cutting by preventing sudden insert fracture Suitable for high efficiency machining

未命名 3 10 resized resized

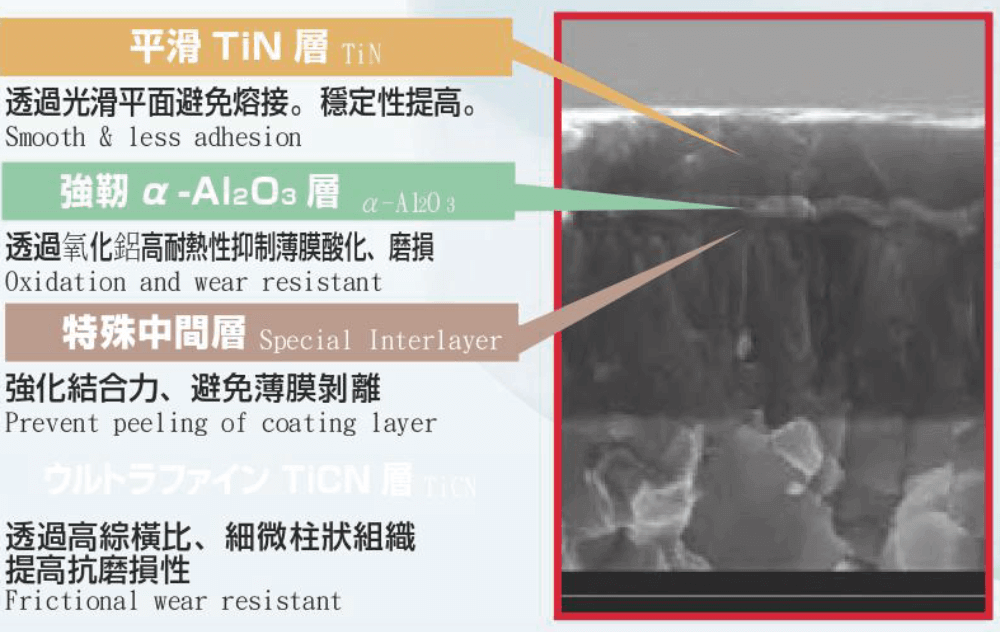

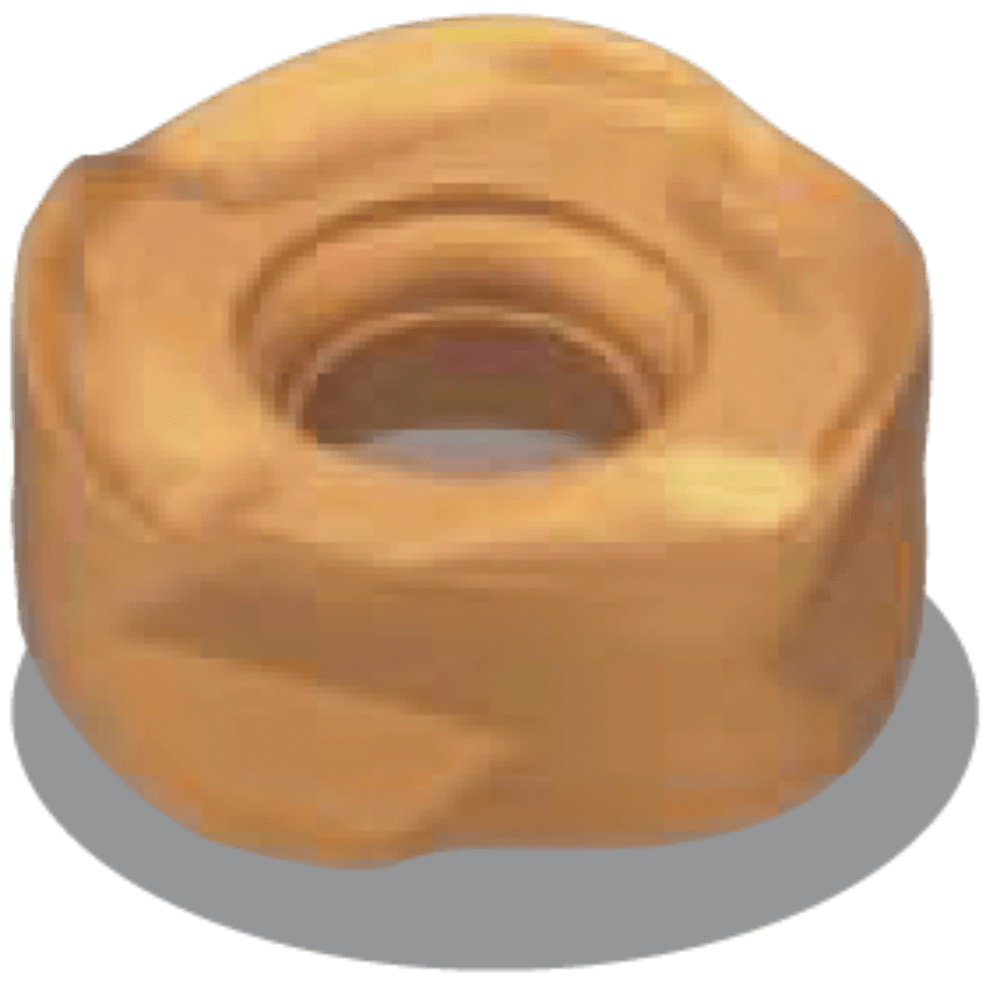

Ni基耐热合金及馬氏體型不鏽鋼專用 CVD具高耐熱性及磨損性 利用塗層硬質合金薄膜可提高穩定性

For Ni-base heat resistant alloy and martensitic stainless steel High heat resistance and wear resistance with CVD coating  Improved stability due to thin film coating technology


未命名 3 11 resized resized

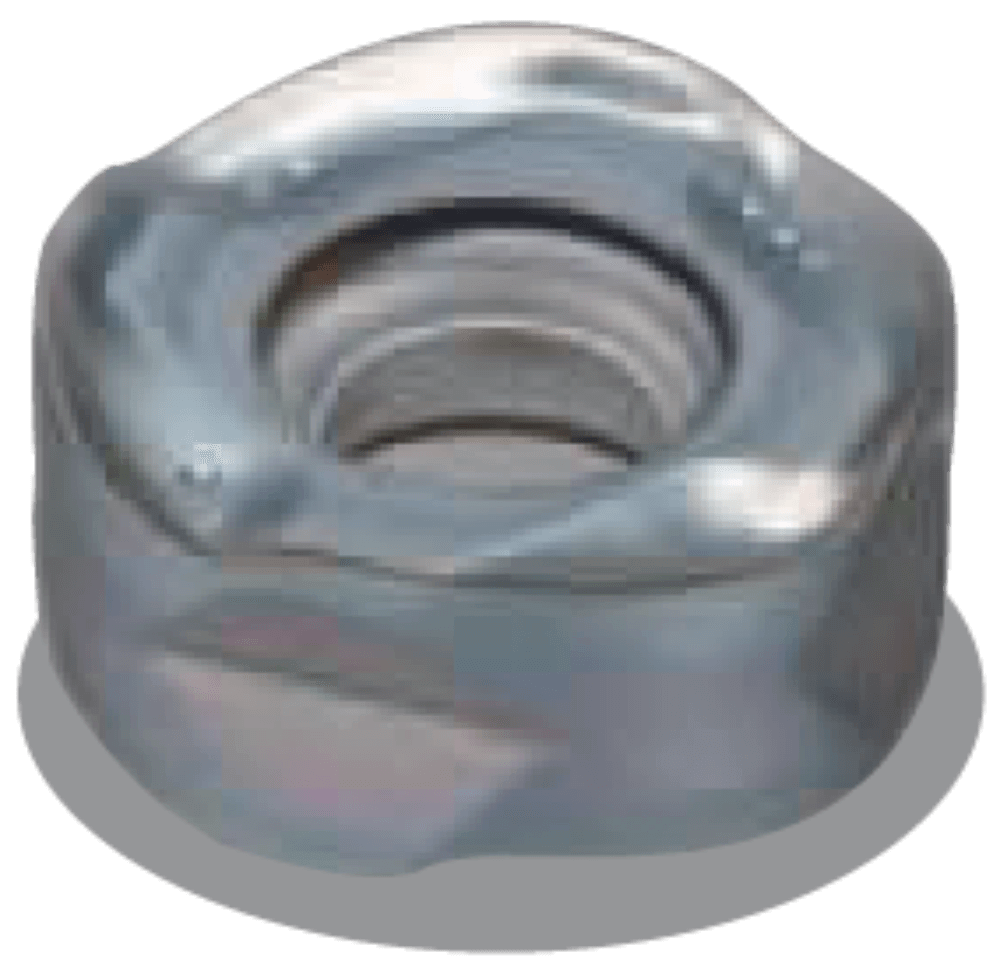

鈦合金、析出硬化型不鏽鋼專用
積層構造 透過特殊極微塗層硬質合金「MEGACOAT NANO 」
實現長壽命及安定銑削加工

For titanium alloy and precipitation hardened stainless steel Stabilized milling operation and long tool life by special nano coating layer MEGACOAT NANO

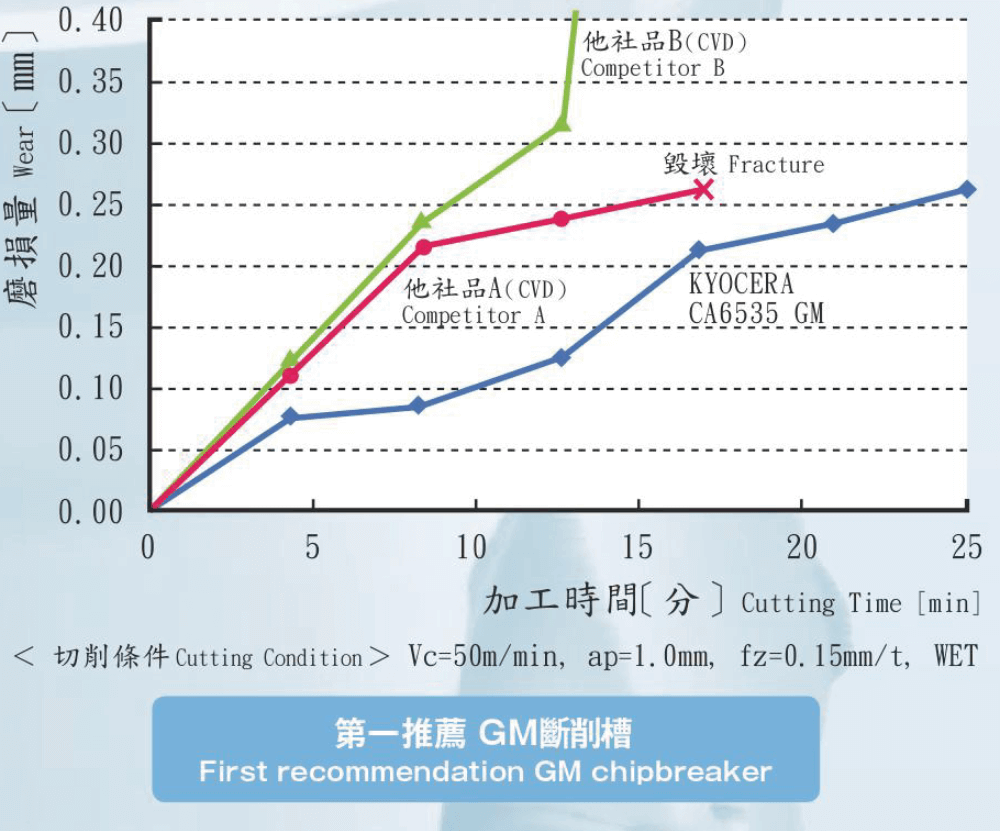

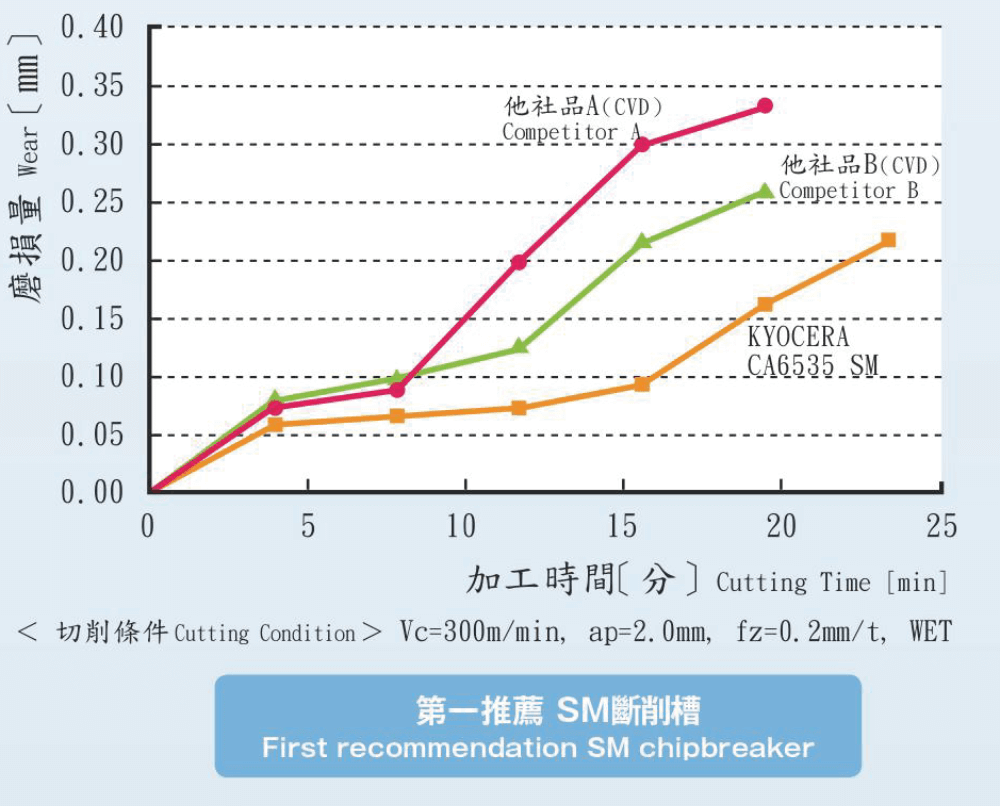

壽命比較 Tool Life Comparison

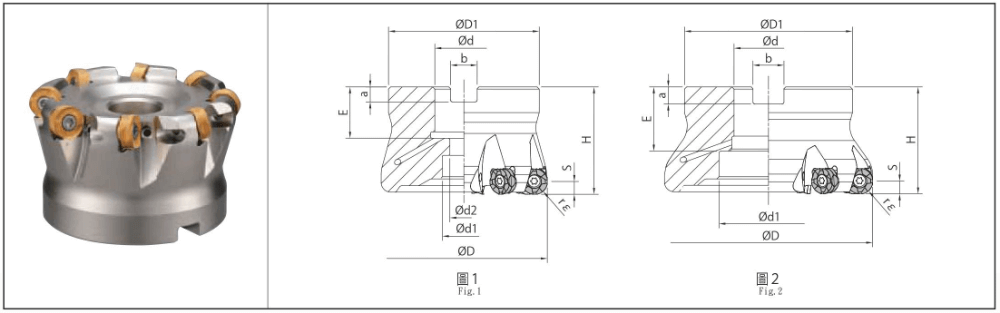

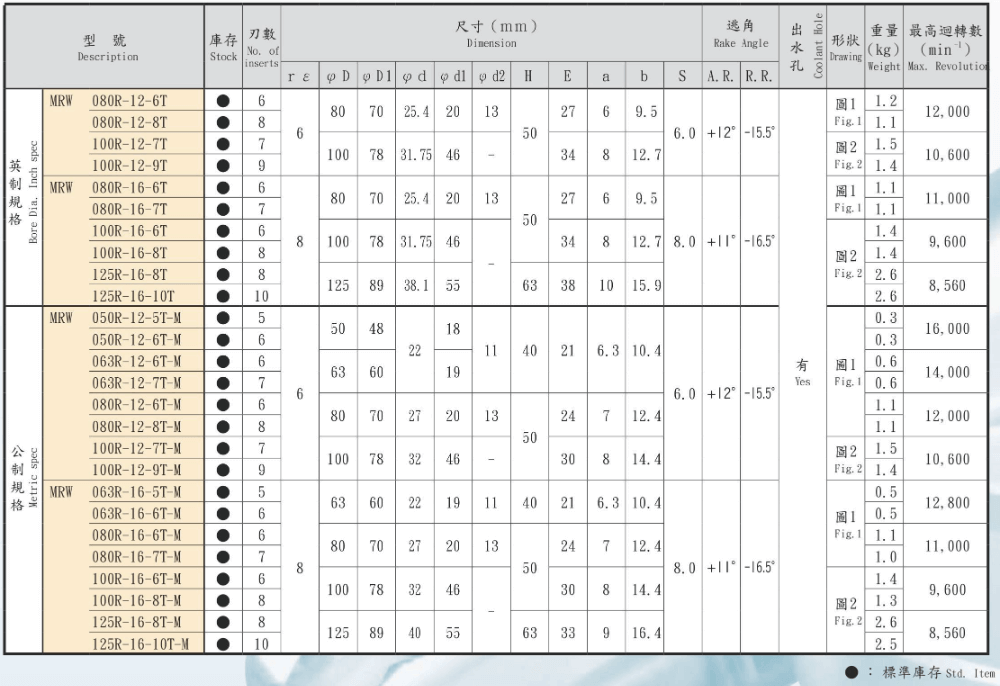

MRW型面銑刀盤(附出水孔)

未命名 3 18 resized resized 未命名 3 19 resized resized MRW2

  • 關於最高迴轉数的表示
    Caution about the Max. Revolution
  • 如果錯誤的操作刀及刀器超出最大轉速時, 刀片、零件等會因離心力而發生飛散等情況。 操作時請留意。
    When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force.
  • 緊固刀片時,把防止高溫燒結劑薄薄地塗在緊固螺絲的螺紋部和頸部。
    Coat Anti-seize Compound (MP-1) thinly on portion of taper and thread when insert is fixed.
  • S表示最大切深。詳情請參照PG。
    S is Maximum ap. For more details, see page 6.

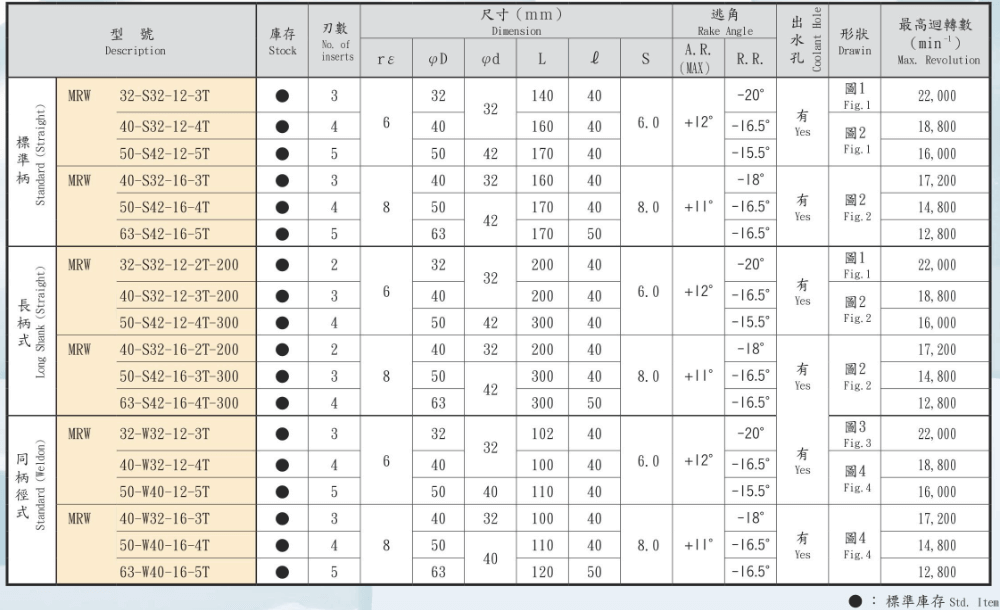

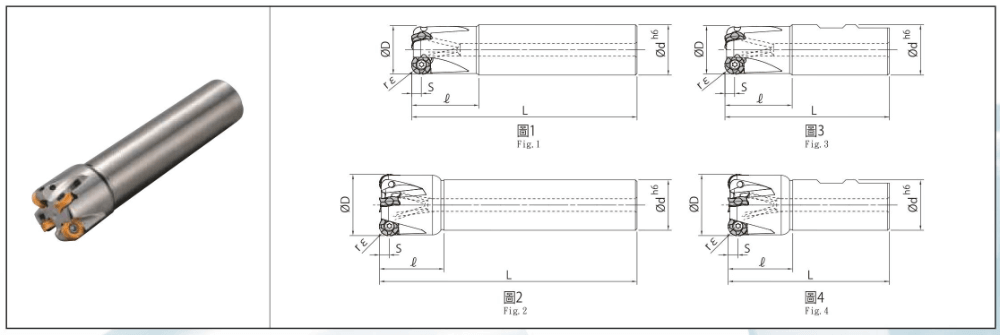

MRW型立銑刀(附出水孔)MRW End Mill(with coolant hole)

未命名 3 21 resized resized 未命名 3 22 resized resized 未命名 3 23 resized resized

  • 關於最高迴轉数的表示
    Caution about the Max. Revolution
  • 如果錯誤的操作刀及刀器超出最大轉速時, 刀片、零件等會因離心力而發生飛散等情況。 操作時請留意。
    When running an end mill or a cutter at the maximum revolution, the insert or cutter may be damaged by centrifugal force.
  • 緊固刀片時,把防止高溫燒結劑薄薄地塗在緊固螺絲的螺紋部和頸部。
    Coat Anti-seize Compound (MP-1) thinly on portion of taper and thread when insert is fixed.
  • S表示最大切深。詳情請參照PG。
    S is Maximum ap. For more details, see page 6.

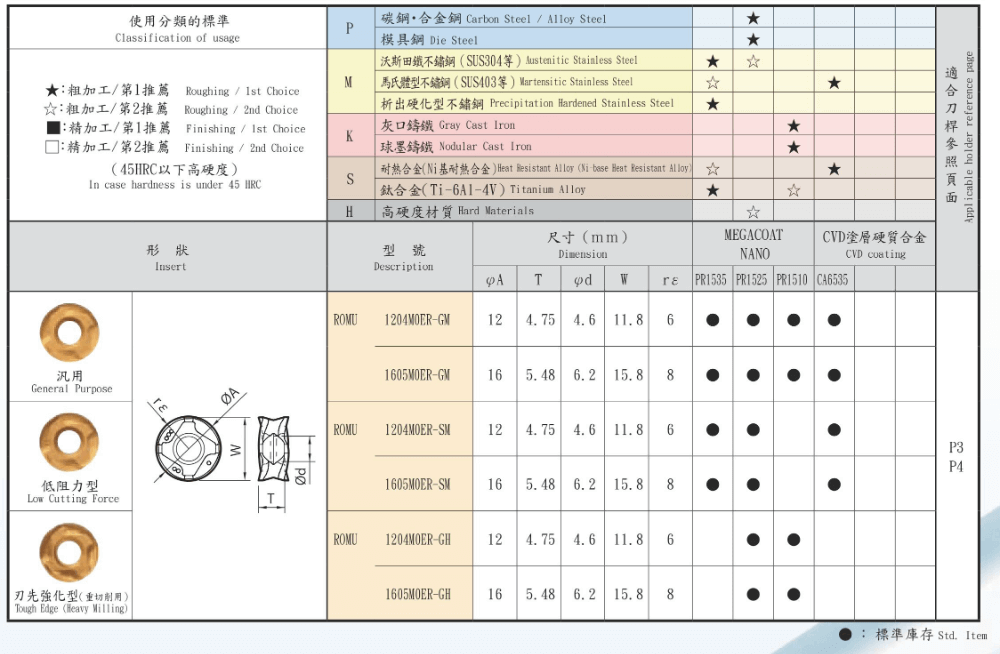

銑削刀片(有孔) Milling Inserts (with hole)

MRW2 未命名 3 24 resized resized

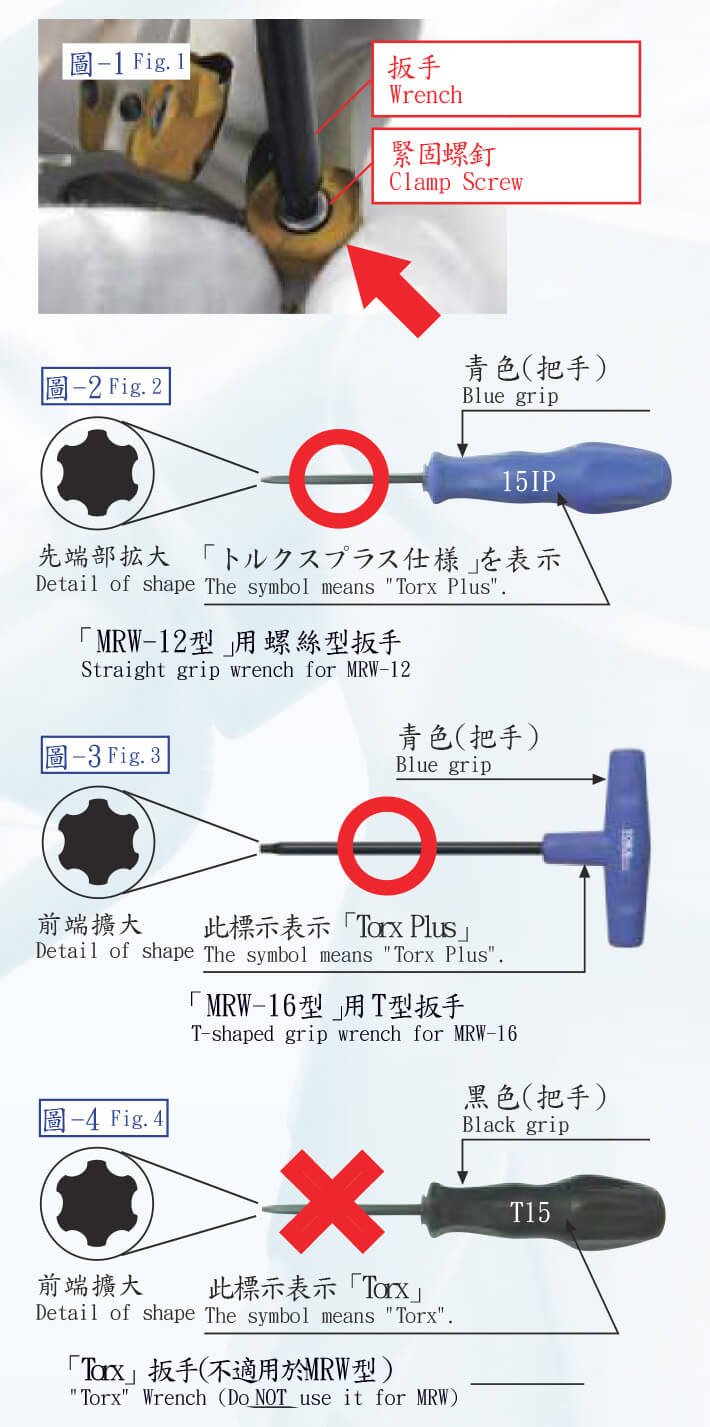

刀片安裝順序 How to mount an insert

  1. 請清除刀片安裝部位的濁物。
  2. 緊固螺絲
    1. 把防止高溫燒結劑薄薄地塗在緊固螺絲的螺紋部和頸部。
    2. 緊固面方向壓緊刀片。(參照圖1)

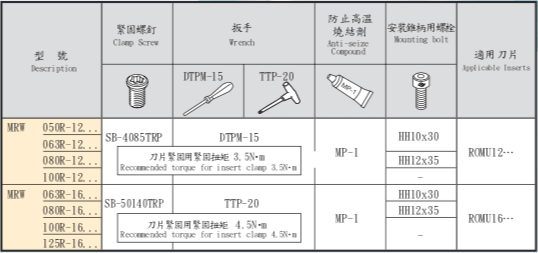

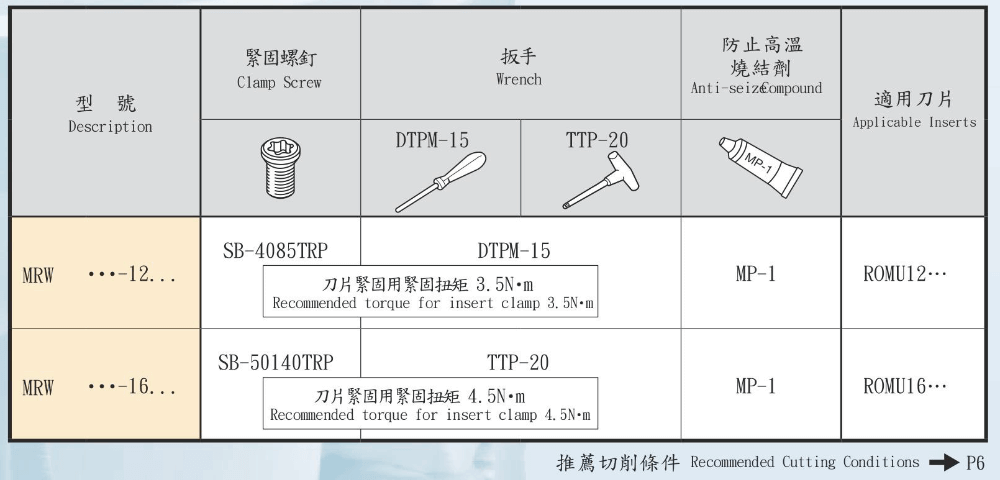

  3. 本產品的緊固螺釘及扳手為
    1. 「MRW-12型(參照圖2)
    2. 「MRw-16型」則為T型扳手(參照圖3)
      緊固紧固螺絲時,請務必使用附屬的扳手。 ※錯誤操作「Torx 」(參照圖4)扳手時,可能因螺紋部及扳手前端損壞導致緊固螺絲無法拆卸。
  4. 請將扳手與緊固螺絲以平行方向緊固。
    推薦緊固螺矩,參P3-P4
  5. 緊固後,請確認刀片底部和刀柄支撑面及緊固面間無間隙。
    若有間隙請再次依安裝順序重新安裝。
  1. Be sure to remove dust and chips from the insert mounting pocket.
    1. Apply anti-seize compound on portion of taper and thread of clamp screw
    2. Attach the screw to the front end of the wrench. While lightly pressing the insert against the constraint surfaces, put the screw into the hole of the insert and tighten. (See Fig. 1)
  2. Wrenches and clamp screws are “Torx Plus”.
    1. Fig. 2 wrench is for MRW-12. (Straight grip)
    2. Fig. 3 wrench is for MRW-16. (T-shaped grip)
      Please use a “Torx Plus” Wrench for tightening cramp screw.
      *If a “Torx” Wrench (Fig. 4) is used to tighten the screw head might become damaged and then the screw cannot be removed.
  3. When tightening the screw, make sure that the wrench is parallel to the screw.
    For recommended torque, see page 3 and 4.
  4. After tightening the screw, make sure that there is no clearance between the insert seat surface and the bearing surface of the holder or between the insert side surfaces and the constraint surface of the holder.
    If there is any clearance, remove the insert and mount it again according to the above steps.

MRW 6

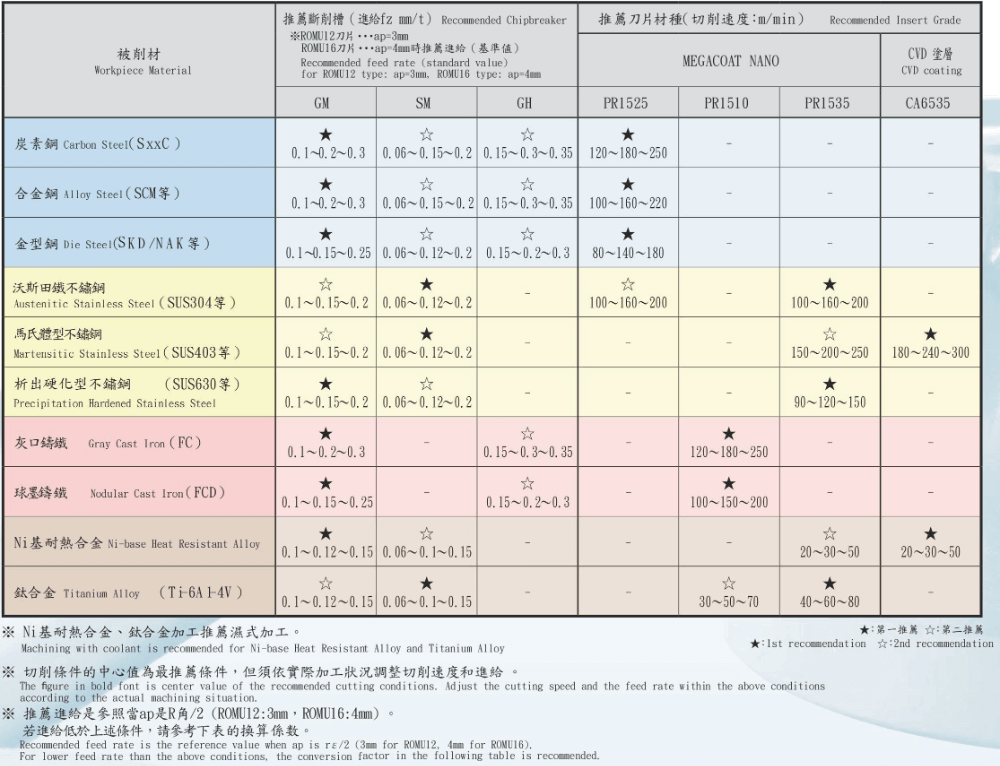

推薦切削條件

未命名 3 26 resized resized

  • Ni基耐热合金、钛合金加工推薦濕式加工。
    Machining with coolant is recommended for Ni-base Heat Resistant Alloy and Titanium Alloy
  • 切削條件的中心值為最推薦条件,但須依實際加工狀況調整切削速度和進給。
    The figure in bold font is center value of the recommended cutting conditions. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation.
  • 推薦進給是參照當ap是R角(ROMI 12.3mm, ROMU16:4mm)。若進給低於上述條件,請參考下表的換算係數。
    Recommended feed rate is the reference value when ap is re/2 (3mm for ROMU12,4m for ROMU16). For lower feed rate than the above conditions, the conversion factor in the following table is recommended.

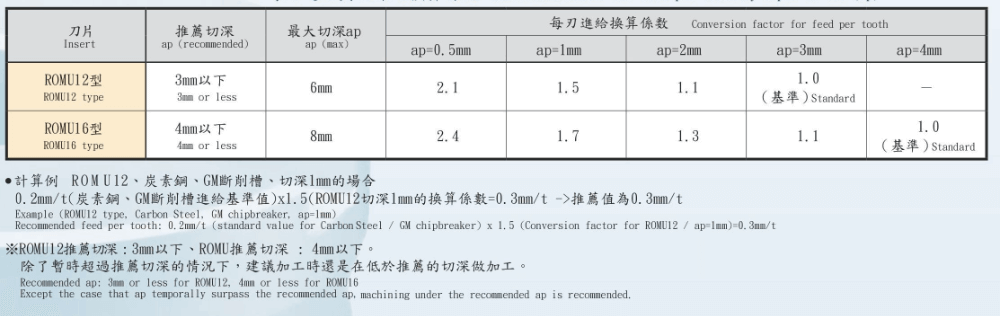

每刃進給與切深之換算係數
Conversion factor for feed per tooth by depth of cut (ap)

未命名 3 27 resized resized

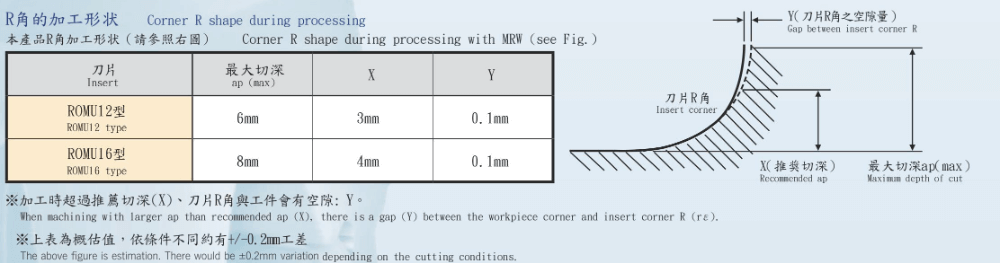

R角的加工形狀 Corner R shape during processing
本產品R角加工形狀(請參考下圖)Corner R shape during processing with MRW (see Fig.)

未命名 3 28 resized resized

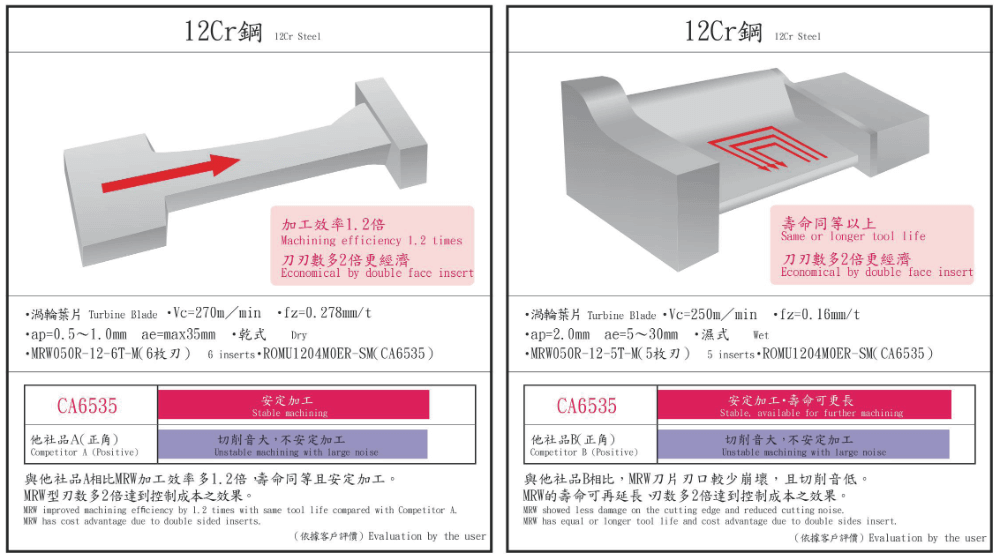

加工實例

未命名 3 29 resized resized

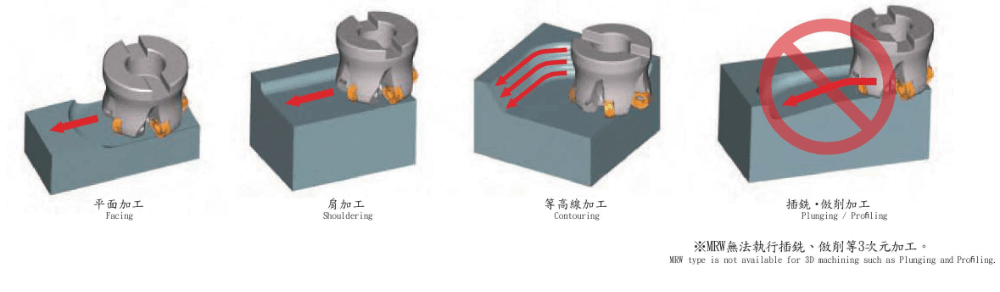

加工型態 Application未命名 3 30 resized resized
