夾頭制動器/油壓缸 CHUCK ACTUATORS

輪殼夾頭專用油壓缸

LMC Workholding提供兩種為輪般來頭特別設計的夾與制動器,這兩種油壓缸具有理想的油壓系統壓力裝置,讓夾頭以最快的速度來夾持和放鬆,而較短 、較輕的設計有利於車床加速和減速,改善器性能。
2R 120 為單動油壓缸,適用於配合中實車床心軸或彈簧片,以求輪圈中心 RNW 為雙汽缸油壓缸,適合起動套筒夾頭或小尺寸三爪夾頭,可求輪圈中心。

LMC Workholding offers two chuck actuators specifi cally designed for wheel chuck applications like yours. These hydraulic cylinders offer optimum hydraulic system pressure settings for the fastest clamping/ unclamping action available. And their shorter lengths and lighter weights enhance lathe acceleration and deceleration while improving machine dynamics.

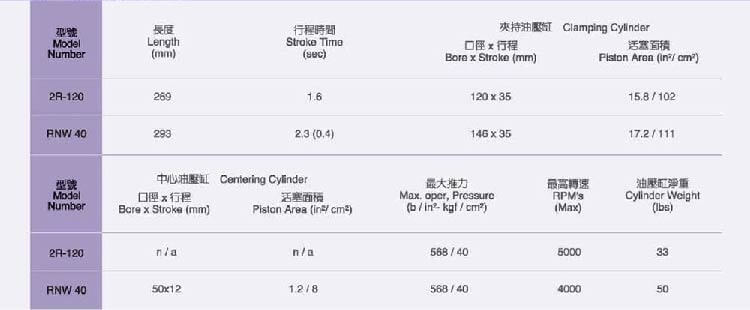

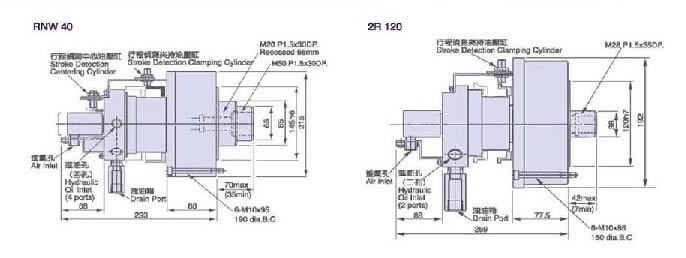

Model 2R 120 is a single-motion cylinder ideal for applications that use solid mandrels or spring rings for wheel centering. RNW is a dual-function cylinder that is ideal for applications that actuate a collet or a small three-jaw chuck for wheel centering.
