二爪超精密氣壓夾頭-2-JAW SUPER PRECISION AIR CHUCKS

京瓷車刀(Kyocera)二爪超精密氣壓夾頭-2-JAW SUPER PRECISION AIR CHUCKS

本產品精密度可達μ級
This product reaches the repeatability of ” μ degree”

  1. 預設治具孔及預留自動潤滑管道:
    Pre-machined tapped holes and lubrication path:
    爪殼預設治具孔,有額外固定需要時不須再追加工;且預留自動潤滑管道,可自動潤滑装置連結。
    There are tapped holes for fixing jigs, thus, additional screw machining is not necessary, and pre-machined lubrication path can connect to auto-lubrication unit to
    lubricate the chuck automatically.
  2. 內藏式汽缸:
    Built-in Cylinder:
    汽缸與夹盤直結設計,確保作動及夾持的穩定性。
    Connect cylinder directly to the chuck for stable gripping.
  3. 生爪精密定位:
    Precise soft jaw positioning
    設有定位銷使生爪在重複拆裝時仍保持良好的定位精度 。
    It’s easy to remount soft jaw to the correct position with dowel pins on it.
  4. 超高精度夾持提高工作效率:
    High gripping precision brings better quality and efficiency.
    夾持工件的同軸度及重覆夾持精度可達 μ級,簡化操作,實現高效率的精密加工。
    Good coaxiality and repeatability of gripping are able to achieve the accuracy of “μ” degree machining processes can be simplified or shortened to make high precision machining with high efficiency come true.

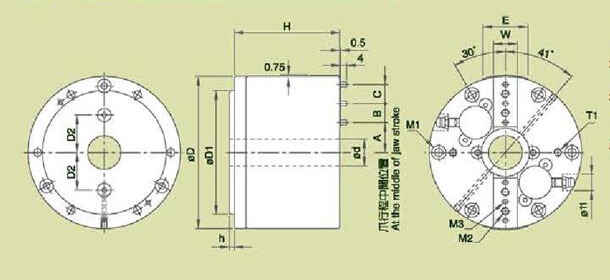

尺寸圖

size hcs29

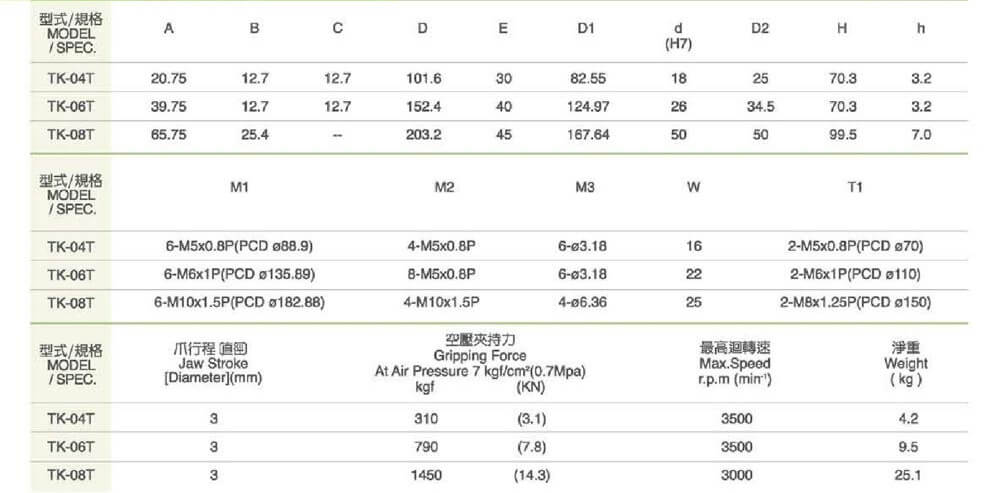

規格表

spec hcs29

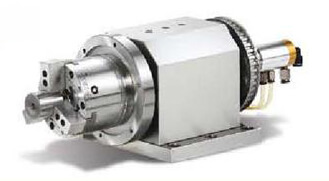

應用實例
