尺寸圖
齒式三爪鋼殼夾頭NT 3-JAW STEEL BODY CHUCKS
Gallery not found.
京瓷車刀（Kyocera）齒式三爪鋼殼夾頭NT 3-JAW STEEL BODY CHUCKS
- 可替代修整油壓生爪成型盤。
Can be used as a “Forming plate” for machining soft jaws. - 爪仔可前後任意調整,加大夾持工件範圍。
Hard jaws and soft jaws can be adjusted just like on a power Chuck to increase the gripping range. - 生爪及硬爪與CNC車床油壓元共用。
Hard jaws as well as Soft jaws are interchangeable with those of power chucks. - 鋼殼結構於高速迴轉時安全性高,耐磨性強,使用壽命長。Chuck Body is made of steel to enhance safety operations for high speed machining.
- 轉動板手扭力較小操作順暢。
The Chuck Handle can be operated easily and Smoothly.

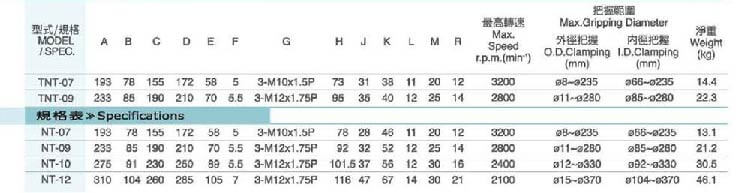

規格表
特點配合圖示說明
The chuck can be used as a “Forming plate” for machining soft jaws.
Top jaws can be adjusted back and forth easily, thus increasing gripping range.
Hard jaws are interchangable with those of power chucks.
Soft jaws are interchangeable with those of power chucks.
Optional accessory: Mounting plate.
