超薄型夾盤-SE SUPER THIN CHUCKS

京瓷車刀(Kyocera)超薄型夾盤-SE SUPER THIN CHUCKS

  1. 輕、薄、短小的設計,適用於工件量測夾持。
    By the compactness comes from “Light, Thin, Short, Small “designing concept; the chucks are most fitting to hold work pieces for measuring.
  2. 直接轉動旋盤,免於使用板手旋轉干涉。
    Just rotate the chuck knob directly for gripping and loosening, A handle is not necessary to be used.
  3. 鋼製本體,耐用性甚佳。
    Chuck body is made of very durable steel.
  4. 夾爪反夾持兩用設計,操作方便。
    Jaws Can be reversibly used; gripping of various sizes becomes much convenient.
  5. 2″最小工件夾持0.8mm。
    2″ chucks can even grip up to the smallest size | of 0.8mm

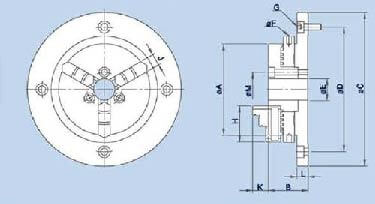

尺寸圖

hcs45 02

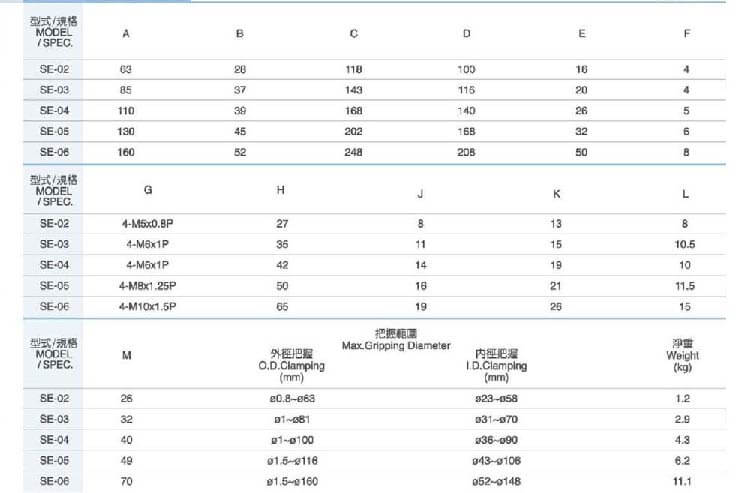

規格表

hcs45 03

使用範例
