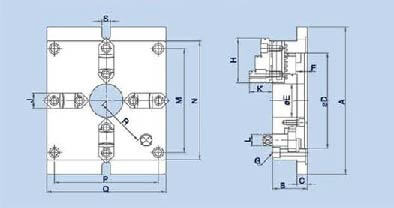

京瓷車刀（Kyocera）方型超薄水盤-MC SUPER THIN SQUARE CHUCKS

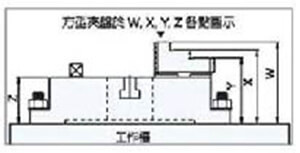

MC均為定寸研磨方式:任何相同規格之方型夾盤W.X,Y,Z 各之高度公差為0.05mm以内。
MC chucks are precisely ground, the tolerances of W,X,Y,Z among chucks are within 0.05mm.
MC規格均可替換生作不規則形狀之加工,以替代中心提大量治具,更經濟、方便。
Soft jaws can be used alternatively for machining special shaped work pieces, to substitute for designing and making a lot of jigs for this purpose.
硬而重複夾持之精度公差為0.02mm以内。
The repetitive gripping accuracy with the hard jaws are within 0.02mm.
側邊平行校正後,硬爪夾持之平行公差為0.05mm以内。
Parallel gripping accuracy with hard jaws can be controlled within 0.05mm after aligning sides of chucks.
