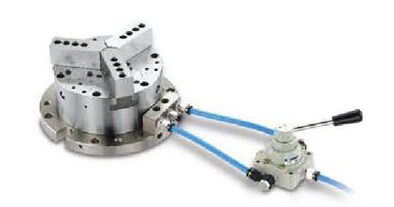

内藏式超精密三爪氣壓夾盤-3-JAW SUPER PRECISION AIR CHUCK FIXTURES

本產品精密度可達μ級
This product reaches the repeatability of ” μ degree”

1. 預設治具孔及預留自動潤滑管道:
   爪殼預設治具孔,有額外固定需要時不須再追加加工;且預留自動潤滑管道,可與自動潤滑裝置連結。
   Pre-machined tapped holes and lubrication path:
   There are tapped holes for fixing jigs, thus, additional screw machining is not necessary, and pre-machined lubrication path can connect to auto-lubrication unit to lubricate the chuck automatically.
2. 内藏式汽缸:
   汽缸與水體直結設計,確保作動及夾持的穩定性。
   Built-in Cylinder:
   Connect cylinder directly to the chuck for stable gripping.
3. 精密定位:
   設有定位銷使生在重複拆裝時仍保持良好的定位精度 。
   Precise soft law positioning: It’s easy to remount soft law to the correct position with dowel pins on it.
4. 超高精度夾持提高工作效率:夾持工件的同軸度及重覆夾持精度可達μ級,簡化操作,實現高效率的精密加工。
   High gripping precision brings better quality and efficiency. Good coaxiality and repeatability of gripping are able to achieve the accuracy of ” degree machining processes can be simplified or shortened to make high precision machining with high efficiency come true.
