內藏式中空油壓 三爪夾盤 3-JAW HOLLOW POWER CHUCK FIXTURES (HYDRAULIC)

京瓷車刀(Kyocera)內藏式中空油壓 三爪夾盤 3-JAW HOLLOW POWER CHUCK FIXTURES (HYDRAULIC)

L:加長行程

内藏式中空油夾盤適用於工作台面的鉆,銑加工而設計。
With built-in type cylinder, it is ideal for machining application on working table.

  1. 氣缸防銹處理:
    在潮溼及工作環境較差的情況,氣缸内部經防銹處理不會生锈或卡死。
    Rust-proof for Pneumatic Cylinder:
    Inside wall of cylinder being rustproof treated; cylinder can work under wet or high moisture
    circumstances without rusty or seized trouble.
  2. 防風裝置:
    在工作台上的站工作、切屑及冷卻液不易進入夾盤内部,確保夾艙的使用壽命及精度。
    Dusts-proof and Waterproof:
    Dust-proof and Waterproof structure prevents work-chips and coolant water from entering into inside of chuck cylinder to maintain its accuracy
    and lead to longer service life.
  3. 內藏式油缸特性:
    把油缸直接裝置於夾頭內部,更能確保連結的穩定性、提升夾持力,適用於重切削皮夾持精度的保持,倍增機械效益。
    Benefit of Built-in Cylinder:
    The cylinder is connected to chuck itself directly for obtaining better stability, less space, and higher machining efficiency.

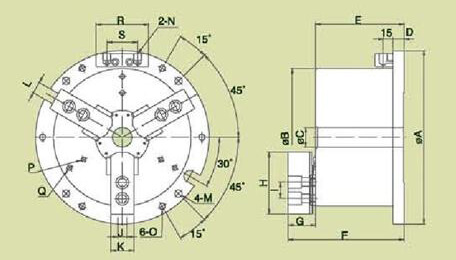

尺寸圖

size hcs26

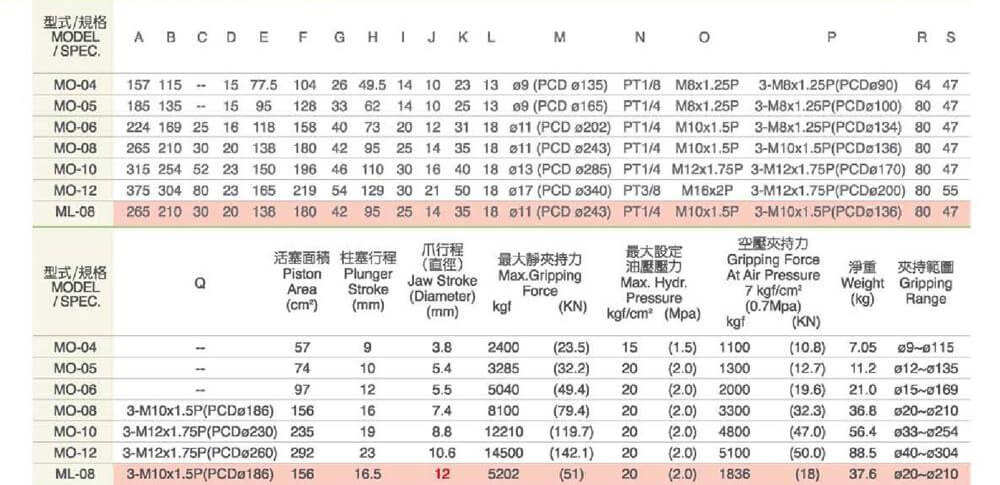

規格表

spec hcs26

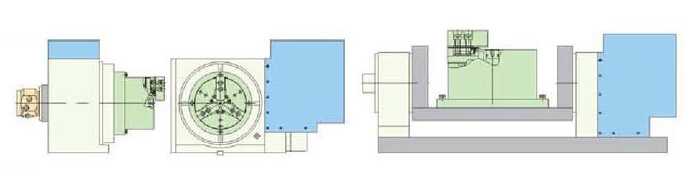

應用實例

operation hcs26
