二爪/三爪迴轉式氣壓夾盤-2-JAW/3-JAW ROTARY AIR CHUCK FIXTURES

京瓷車刀(Kyocera)二爪/三爪迴轉式氣壓夾盤-2-JAW/3-JAW ROTARY AIR CHUCK FIXTURES

輕切削加工適用 Suitable for light cutting

迴轉式壓水離適用於分度盤,具可隨分度盤主軸旋轉功能,動力夾持加工物作角度分割或旋轉切削。
It’s Ideal for dividing or cutting work pieces by mounting the chuck on indexing table or rotary table. The distinctive feature is that the chuck rotates with the spindle of indexing table or rotary table.

  1. 氣缸防銹處理:
    Rustproof treated cylinder:

    在潮溼及工作環境較差的情況,氣缸内部經防銹處理,不會生銹或卡死。
    The cylinder won’t get rusty and seized even in wet or high moisture working environment.
  2. 防塵装圖:
    Dust and water proof cover:

    工作中的鐵屑及切削液不易進入體內部的缸室,確保夾盤的使用壽命及精度保持。
    Prevent metal chips or coolant from entering inside of chuck cylinder to maintain its accuracy and lead
    to longer service life.
  3. 前置式氣缸:
    Integral pneumatic cylinder:
    氣缸與夾盤直結設計,確保夾持的穩定性,更方便於組裝及操作。
    Connect chuck and built-in cylinder to each other directly: thus enables operation stability Moreover, it is more convenient for installation and operation since the use of draw tube and draw bar are no longer necessary.

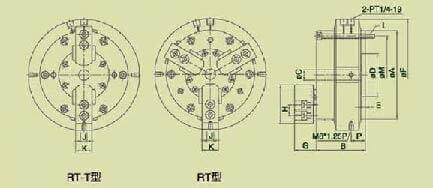

尺寸圖

hcs35 02

規格表

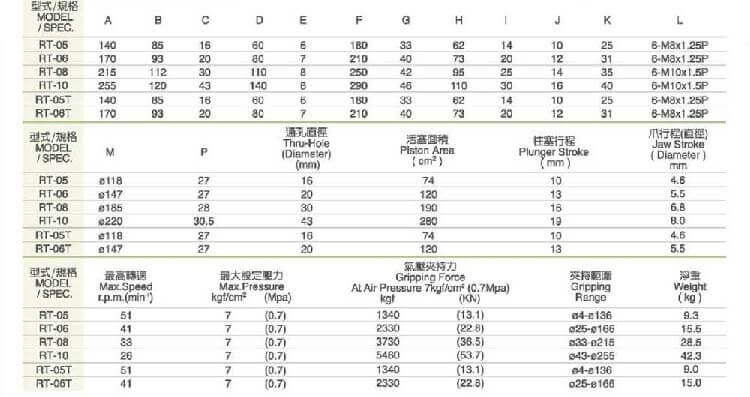

hcs35 04

應用實例

hcs35 03
